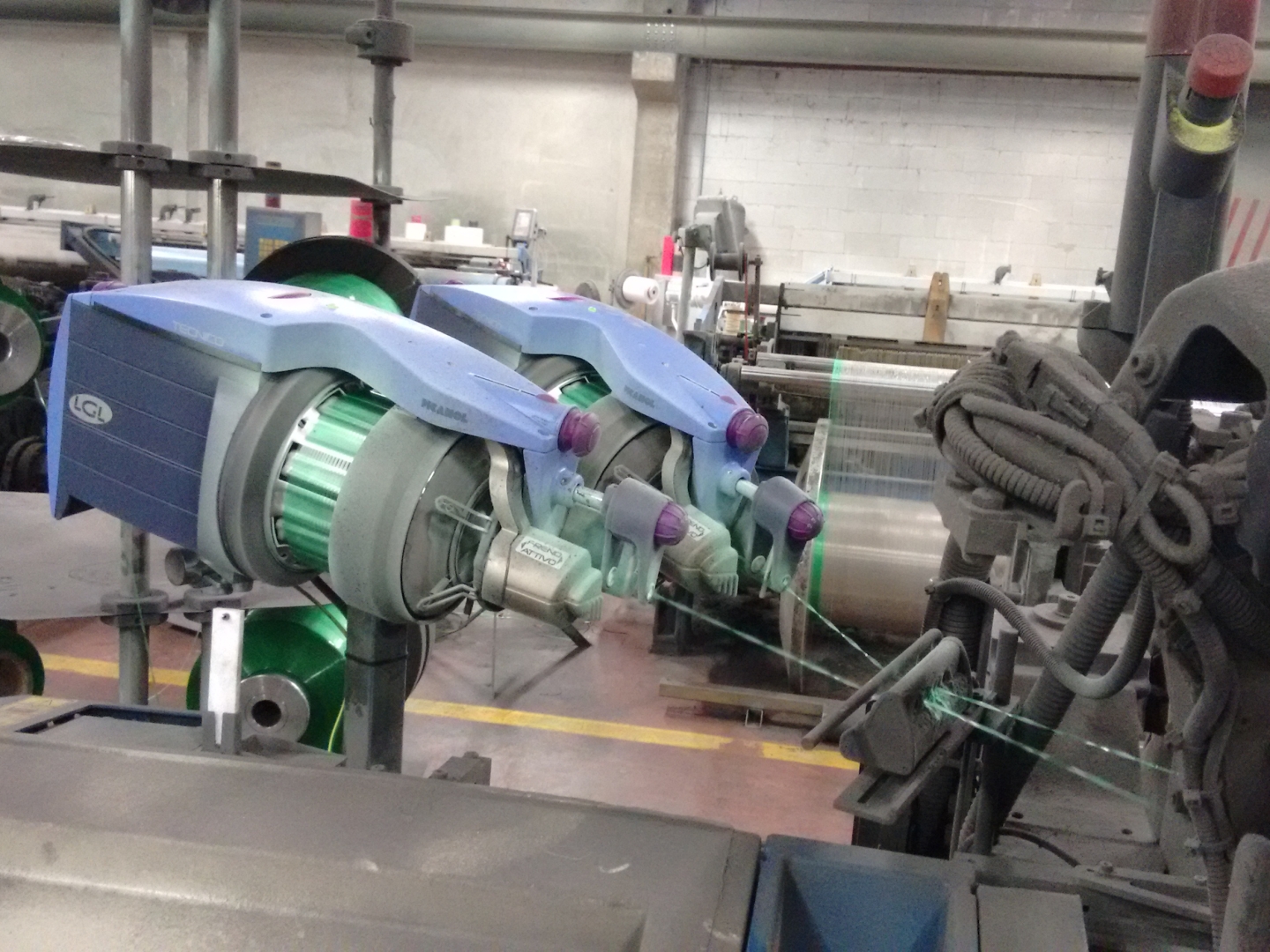

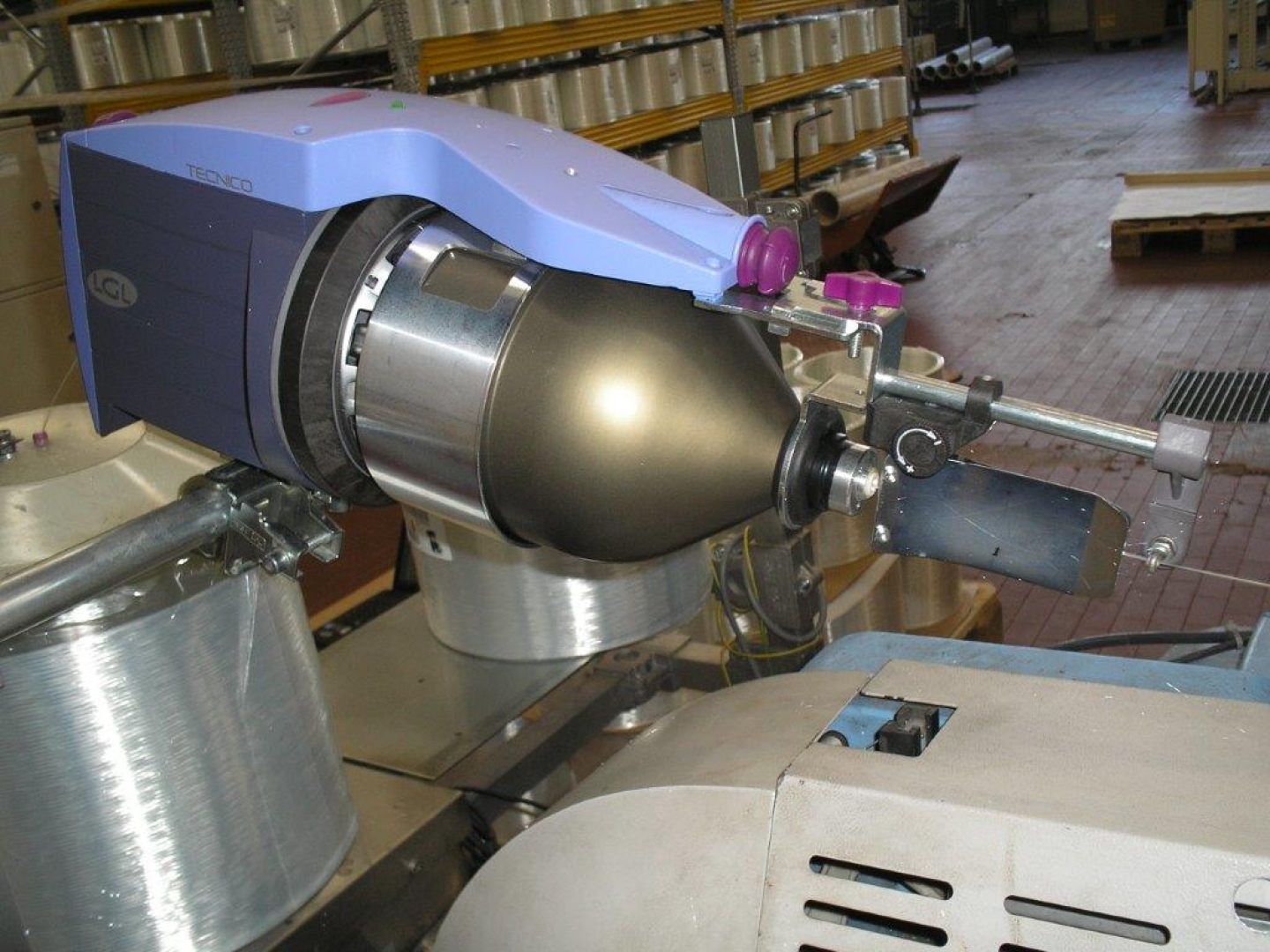

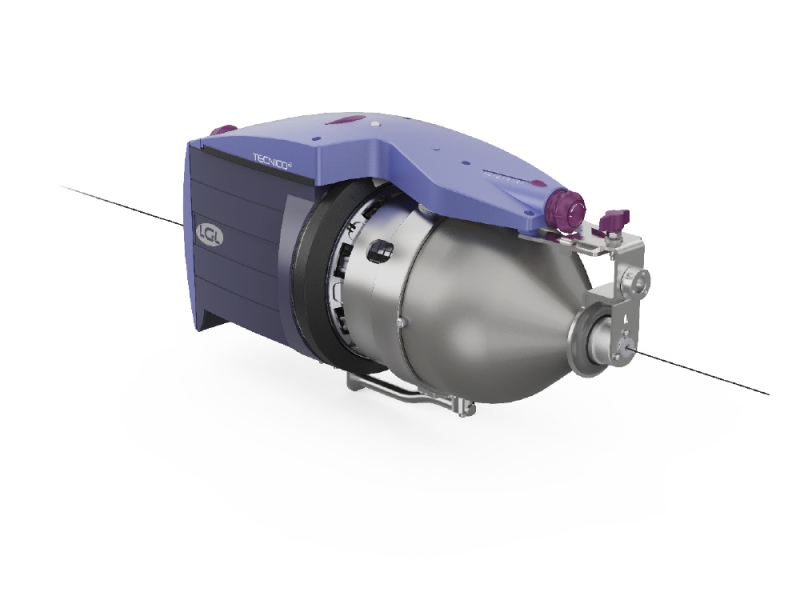

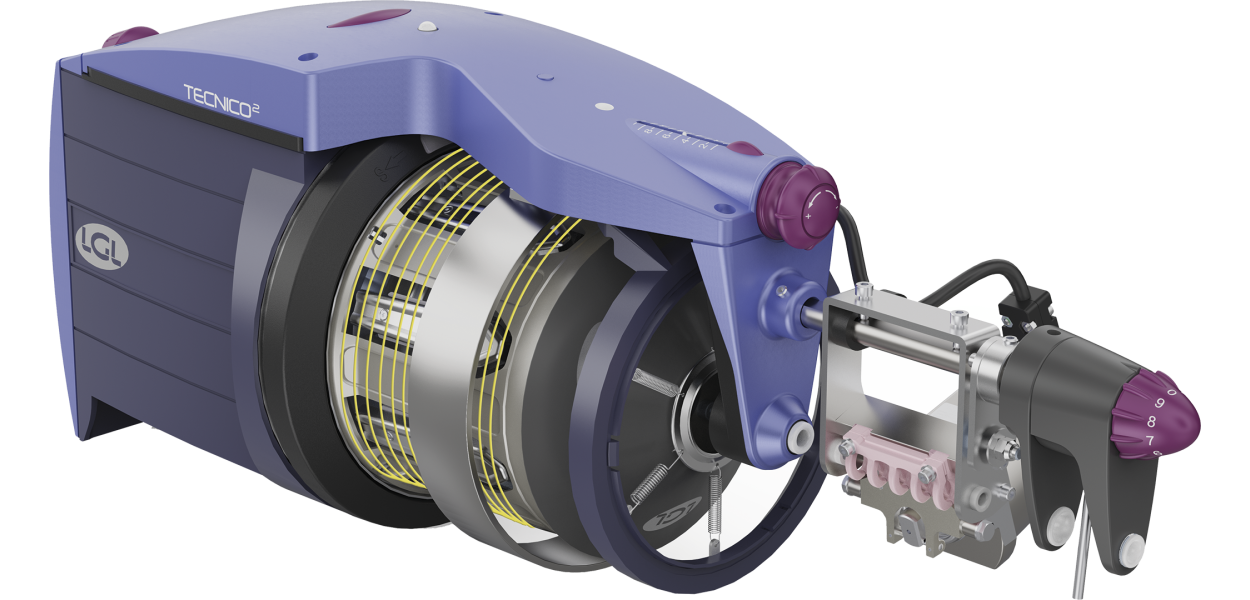

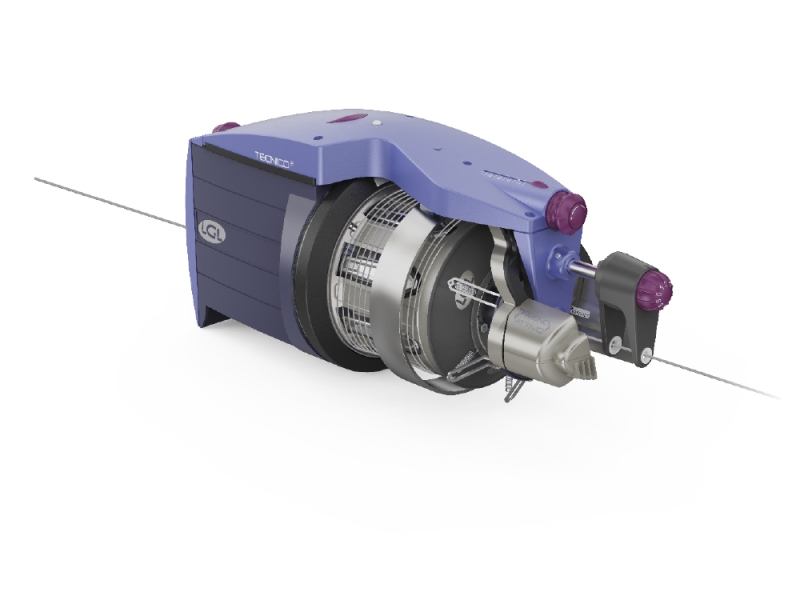

Weft accumulator with separate adjustable coils that can be used on all gripper and projectile weaving machines. It is equipped with specific solutions aimed at weaving technical wefts such as polypropylene strap, jute and aggressive yarns, fibreglass, rowing, monofilament yarns.
Multiple versions available
Each of those equipped with technical solution designed to deliver best weaving performance for each weft:
• Carbon fiber
• Steel wire
|Speed||Up to 1900 m/min|
|Braking systems||Manual, Brake,Tens,Srake,Attivo|
|Coil separation||0 to 5 mm adjustable|
|Motor||Three-phase asynchronous, maintenance-free|
|Power supply||140/300 VDC or 135 VAC three-phase|
|Acustic pressure||< 70 dBA at max speed|

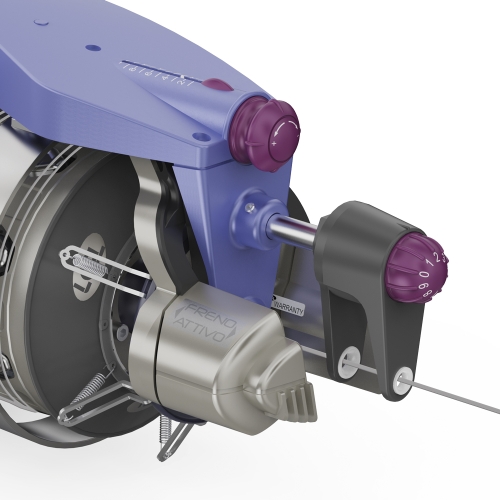

Allow to set 9 different breaking zones over the loom shed. Minimize yarn stress due to tension picks.
Reduce loom stops in the long run.
Is suitbale for fine, medium and coarse weft yarns.
All functions granted by ATTIVO.
The presence of a rake allows management of higher tensions range.
Keeps the avarage tension consistent avoid fabric width changes.
Reduce waste by keeping selvedge constant. Lockable display avoids undesired parameters change.

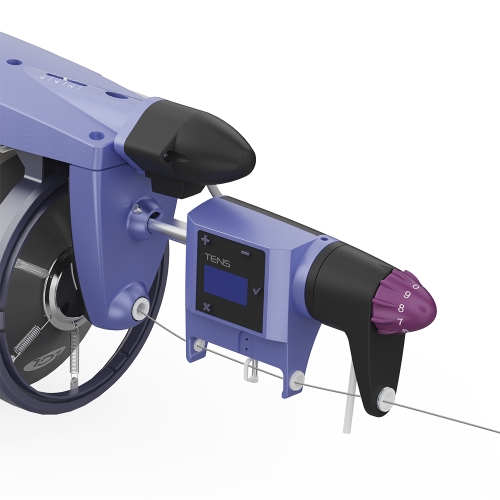

Save tension settings and upload them in future production runs of the same article.

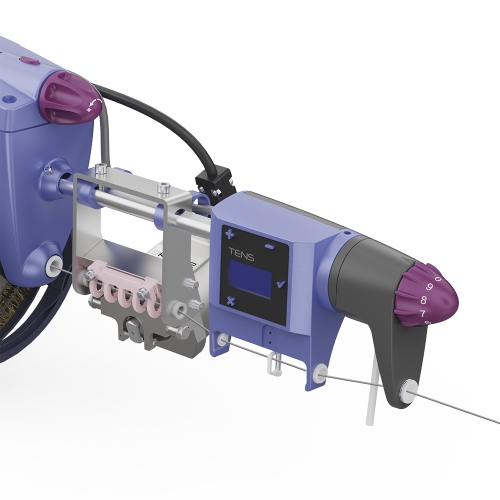

All functions granted by TENS.

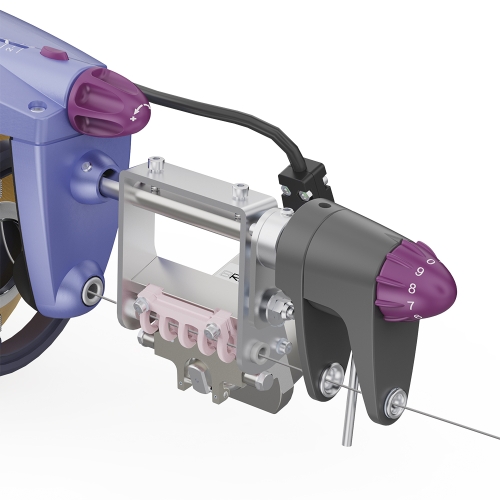

The presence of a rake allows managament of higher tension range.

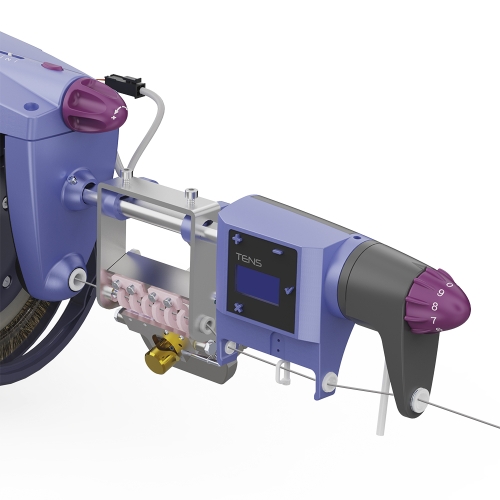

All function granted by B-RAKE.
Manage average tension on a selected braking zone.
Recommended solution for filters, anti-hail nets, screens, monofilament.
